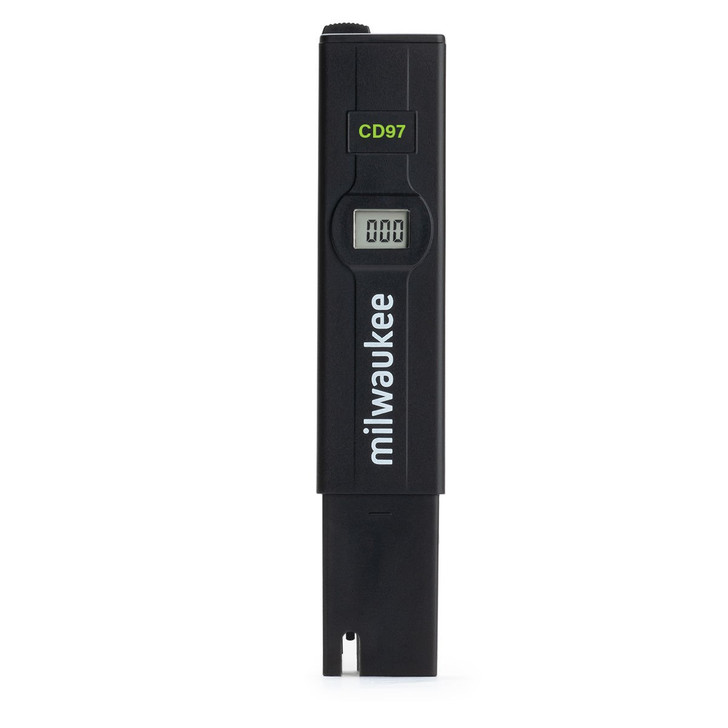

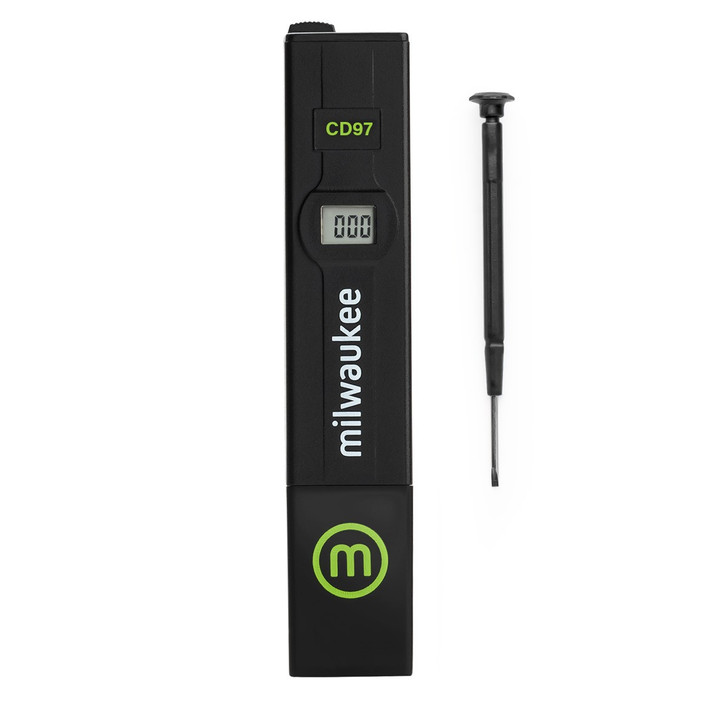

Milwaukee CD97 Digital Low Range TDS Pen

SKU:
CD97
UPC:
810666001680
MPN:
CD97
Range:
0 to 999 ppm
Resolution:
1 ppm
Accuracy:
±10 ppm
Temperature Compensation:
Automatic 5 to 50°C (41 to 122°F)
Manual:
Milwaukee CD97 Manual

Options

$29.00
Or

Info

SKU:CD97 ,UPC:

Info

SKU:
CD97
UPC:
810666001680
MPN:
CD97
Range:
0 to 999 ppm
Resolution:
1 ppm
Accuracy:
±10 ppm
Temperature Compensation:
Automatic 5 to 50°C (41 to 122°F)
Manual:
Milwaukee CD97 Manual

Warranty

Specifications Range: 0 to 999 ppm Resolution: 1 ppm Accuracy: ±10 p…

Warranty

Specifications


Range: 0 to 999 ppm
Resolution: 1 ppm
Accuracy: ±10 ppm
Calibration: Manual, at 1 point through trimmer
Temperature Compensation: Automatic from 5 to 50°C (41 to 122 °F), with ß=2%/°C
Environment: 0 to 50°C / 32 to 122°F; max RH 100%
Battery Type: 4 x 1.5V Alkaline (included)
Coin Cell Type: LR44
Battery Life: Approx. 300 hours of continuous use
Calibration Solution: M10080B (25 sachets 20 mL ea.)
Dimensions: 6 x 1.2 x 0.95 inches (180 x 65 x 32 mm)
Weight: 3.5 ounces (0.99 g)

Description

Digital. Simple. Compact.

The Milwaukee CD97 Total Dissolved Solids Low Range (ppm) Pen is designed for water conditioning, education and many other applications. CD97 measures total dissolved solids (ppm) direct and with automatic temperature compensation.

This pen helps you make sure that your filters are up-to-date and clean for water filtration. CD97 is also a cost effective tool for teacher’s science labs. Keeping ppm in your target range helps to achieve better results.

Design Features

  • Measures Total Dissolved Solids (TDS) direct (ppm)
  • Ideal range for water conditioning (0 to 999 ppm)
  • Units in ppm easily convertible to µS/cm
  • Simple one-point calibration
  • Factory calibrated with the ability to recalibrate if needed
  • Automatic Temp. Compensation (ATC)
  • Battery life of approx. 300 hours of continuous use

Care and Use

Maintenance

EC/PPM electrodes can develop nutrient build up over time. To miminize build up, always rinse the probe in fresh tap or DI water after every use.

Converting TDS to EC

The Milwaukee TDS/PPM Pen, like all TDS meters, provides a reading  measured in parts per million of contaminates per unit of volume in a solution.

TDS/PPM is often converted to uS/cm. Different scales include the 500 scale, 650 scale and the 700 scale.

Your TDS/PPM reading can be approximately converted to uS/cm as shown in the examples below.

1 ppm = 2 uS/cm on the 0.5 factor scale
1 ppm = 1.43 µS/cm on the 442 scale or .70 factor scale

Thank you for considering Milwaukee to help you take your results to the next level.
